Dental Pneumatic Elevator

 Installation:
(1) Turn off the cooling water and the atomization switch.
(2) Select a suitable nose according to the tooth extraction.
(3) Link the dental pneumatic air source connector with the universal link head of the dental treatment machine.

 Operating method:
(1) Pneumatic and stop: pedal the dental machine, start, and stop by releasing the foot switch.
(2) Adopt a pen-holding handle, with the blade plane facing the tooth side, the periodontal clearance direction is parallel, and insert the periodontal clearance along the long axis direction and the handle.

Usage of Tips:

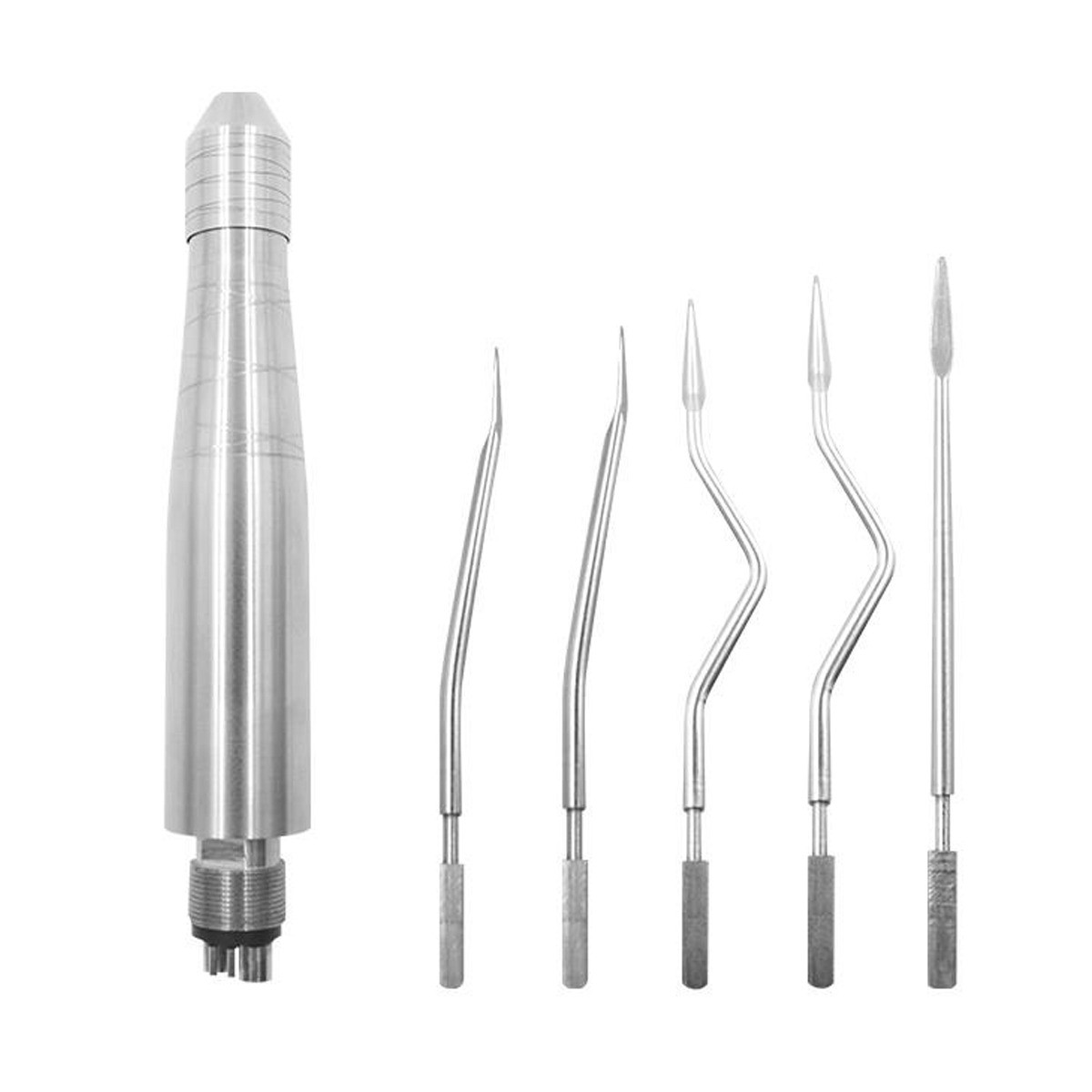

(1) Select suitable tips according to the different tooth extraction parts, and will have five A1; A2; A3; A4; A5 models respectively
(2) A1 is used for premaxillary molars and lateral periodontal periodontal cutting.
(3) A2 is used for upper and mandibular molars and mandibular wisdom teeth, buccal periodontal gap, periodontal cutting, and mandibular molars wisdom teeth, tongue side gap, cut off the periodontal membrane.
(4) A3 is used for double bending, mechanical design for maxillary 18 wisdom teeth, buccal periodontal clearance, periodontal cutting, and 28 wisdom teeth palate periodontal clearance and periodontal cutting.
(5) A4 is used for double bending, mechanical design for maxillary 28 wisdom teeth, cheek periodontal gap, periodontal cutting; and periodontal cutting of maxillary 18
(6) A5 is used for upper and lower maxillary front teeth, premolars, lip, tongue, and palate periodontal clearance.
